Productpage
Sordin Nexus PTT
Product data
Sordin Nexus PTT
Sordin Nexus PTT
Product number:
75903-XXX
Product number variants:
See variants below
For:
Sordin Supreme MIL
Product Family:
Accessories
Version:
Sealing rings material:
No items found.
No items found.

GENERAL INFO

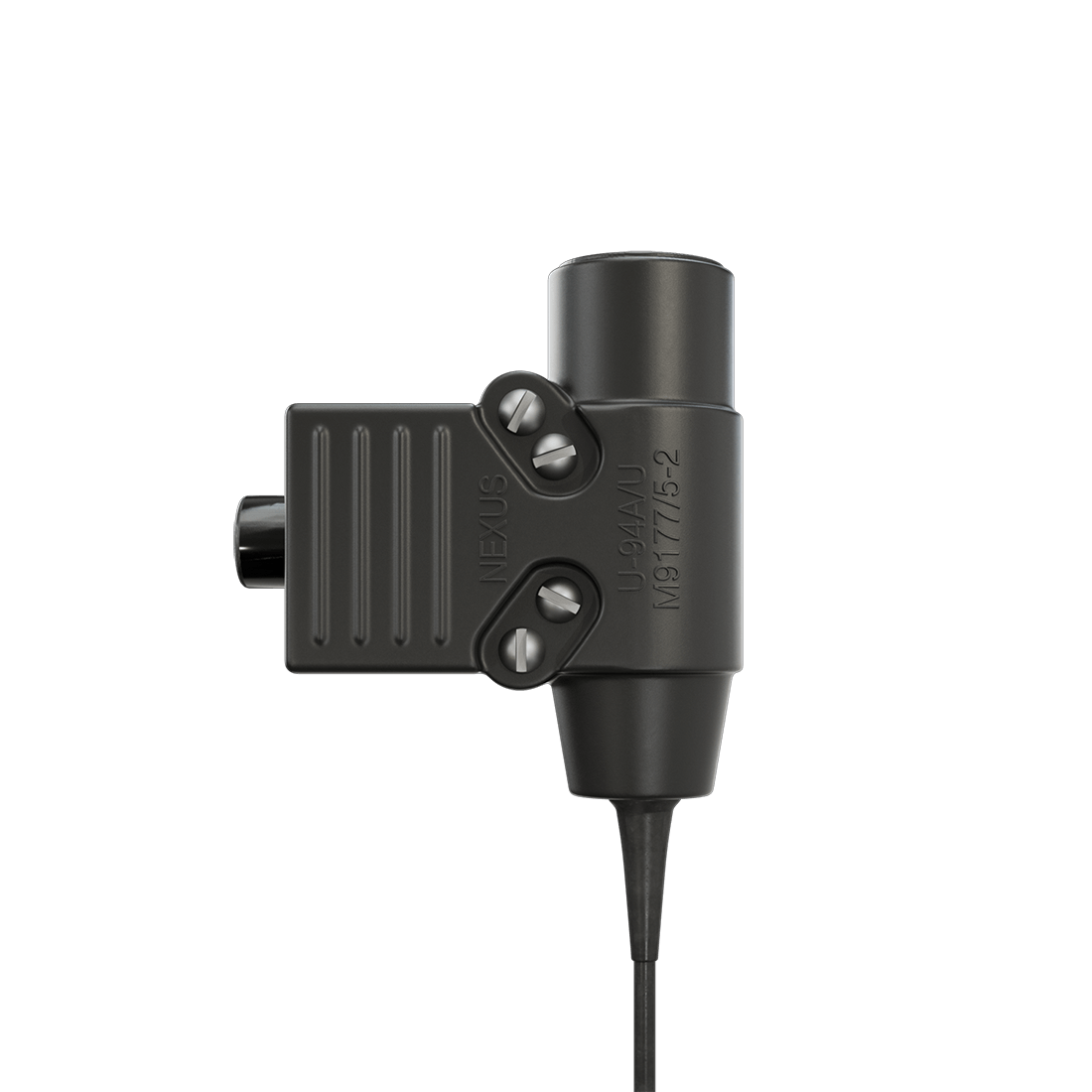

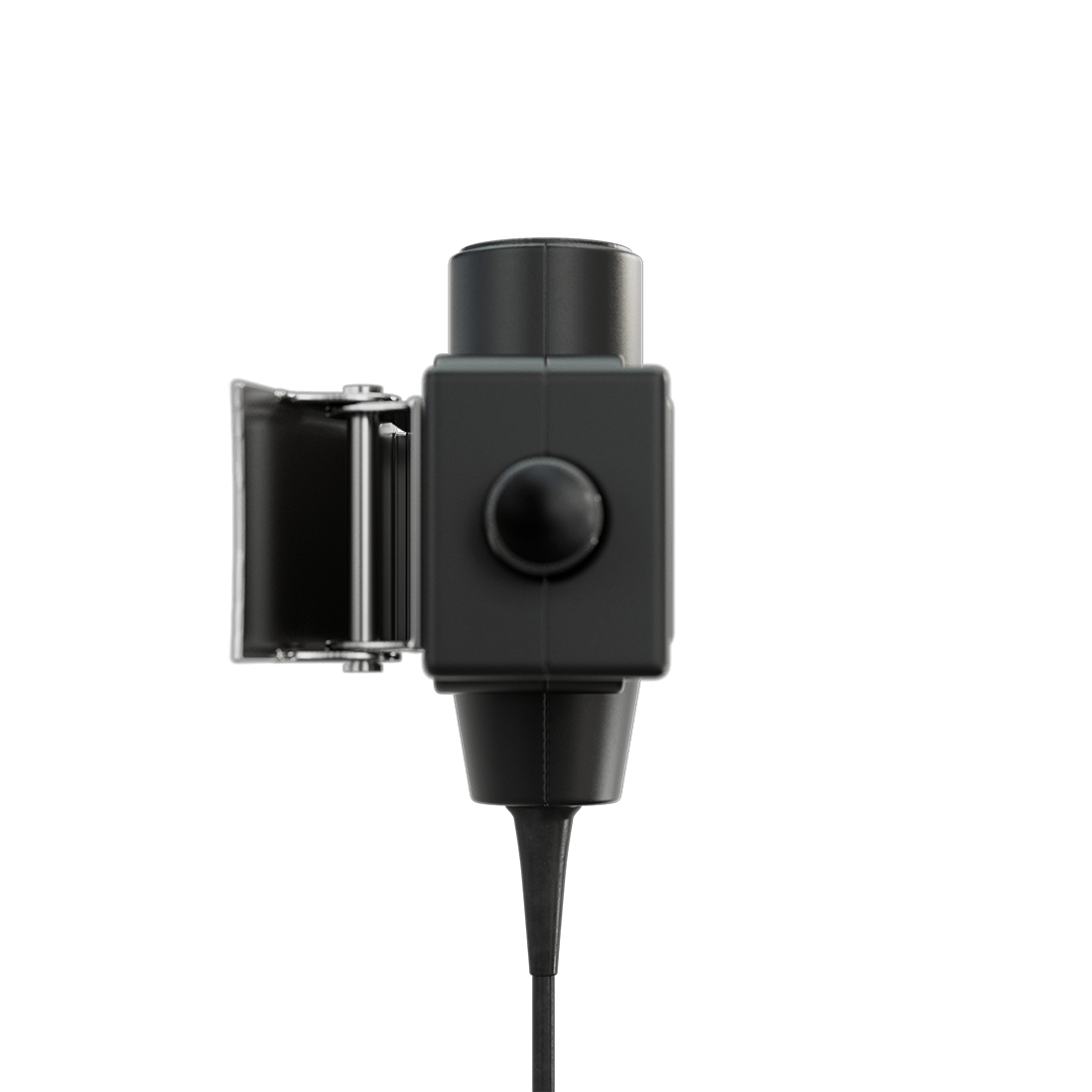

The Nexus M9177/5-2 (U-94A/U) is a Single Com PTT system. The housing is of a compact and rugged design. It has a splash proof black body with a robust click switch and a clip for attaching to clothing. It has a 520 mm coiled cable between the box and the radio interface.

FEATURES

  • Compact and rugged design
  • Complete assembly with headset connector, PTT Box, coiled down lead and radio interface
  • Black body with a robust click switch button
  • Clip system for attachment to clothing or protective vests

Total PTT assembly:
Built to MIL-STD 310 A, B, C, D, standards

Headset connector:
3.5 mm heavy duty Nexus connector

Down lead:
Coiled, heavy duty down lead. Length may vary between different radio interface but the average relaxed length is 0.4 meter with a 90% maximum extension to 1.4 meter

Water resistance:
Splash proof

Weight:
Vary between different radio interface

Product numbers:

  • EADS (prod.no: 75903-015)
    THR880/ THR880i
  • ICOM (prod.no: 75903-007)
    F3, F3S, F4, F4S, F4TR, F10, IC-H2, H6, J12, M5, U12, U16, IC4008, 4088A.
  • KENWOOD (prod.no: 75903-009)
    TK-272G/372G, TK3130  ProTalk  XLS, TK-3131 Free Talk  XLS, TK-220/320, 240/340, 240D/340D, TK208/308, 430/431, 250/350/353, TK260/270, 260G/360G, 360/370, 270G/370G, 248/348, 2100/3100, 2160/3160 ProTalk, 3101 FreeTalk  XL 2102/3102  ProTalk
  • LAFAYETTE (prod.no: 75903-008)
    Micro3+
  • MAXON (prod.no: 75903-003)
    SP120, SP130, SP140, SL25, SL55, SL55+
  • MAXON (prod.no: 75903-010)
    SP-200, SP210, SL100 and Legacy Series-PL1145, PL2245, PL2215P, PL2245P, PL2415, PL2445, PL5161, PL5164
  • MIDLAND (prod.no: 75903-008)
    G7
  • MOTOROLA  (prod.no: 75903-001)
    HT750, HT1250, HT1250LS, HT1550/HT1550XLS, MTX850/MTX850LS, MTX8250/MTX8250SL, MTX950/MTX9250, GP140, GP320, GP328, GP338, GP340, GP360, GP380, GP640, GP1280, PRO5150, PRO9150
  • MOTOROLA  (prod.no: 75903-002)
    GP300, SP50, P110, P-1225/P1225LS, LTS2000, CP88, CP150, CP200, CT150, CT250, CT450, CT450LS, GP308, P080, P2000, PRO2150, PRO3150, P040, P080, GP68, GP88, PR400,SP10, SP21, XTN500, XTN600, PRO1150, CP100, PMR446, XTN446, XU1100, CLS1110, CLS1410, XU2600, HLN9716, HLN9482A
  • MOTOROLA  (prod.no: 75903-005)
    XTS3000/Astro, XTS3500, XTS2500/XTS5000 and HT-1000 Series (HT-1000, MT2000, MTS3000, MTX8000, MTX838, MTX9000, MTX-LS, JT1000), GP900
  • MOTOROLA (prod.no: 75903-011)
    GP-344/388, GP-328+/338+, EX-500/600, GL-2000
  • SEPURA (prod.no: 75903-014)
    SRP2000
  • THALES (prod.no: 75903-006B)
    PRC-148
  • VERTEX/YAESU (prod.no: 75903-007)
    VX-310, VX200, VX500, VX-510L, VX-520U
  • VERTEX/YAESU (prod.no: 75903-012)
    VX-210 , VX-210A, VX-150, VX-160, VX-180, VX-246
  • VERTEX/YAESU (prod.no: 75903-013)
    VX-820, VX-821, VX-824, VX-829, VX-920, VX-921, VX-924, VX-929
  • ZODIAC (prod.no: 75903-007)
    BT-serie, BT-160, BT-31

NB! If your radio isn't found in the list, please contact us for more information.

SPecification
Version
Weight (gram)
Cup color
Black
Type
Headband
Category
Battery lifetime (h)
NRR =
SNR =
H =
M =
L =
With connector
75333-S
Product number
Sordin Supreme Mil CC Headband Type TP120 Black
74332-06-S
Product number
Sordin Supreme Mil CC Slim HB Type Nexus TP120 Green
74332-S
Product number
Sordin Supreme Mil CC Slim HB Type Nexus TP120 Black
74333-10-S
Product number
Sordin Supreme Mil CC Slim HB Type 6 pol Sand
74333-09-S
Product number
Sordin Supreme Mil CC Slim HB Type 6 pol Green
74333-08-S
Product number
Sordin Supreme Mil CC Slim HB Type 6 pol Black
74333-05-S
Product number
Sordin Supreme Mil CC Slim HB Type TP120 Sand
74333-S
Product number
Sordin Supreme Mil CC Slim HB Type TP120 Black
74333-06-S
Product number
Sordin Supreme Mil CC Slim HB Type TP120 Green
