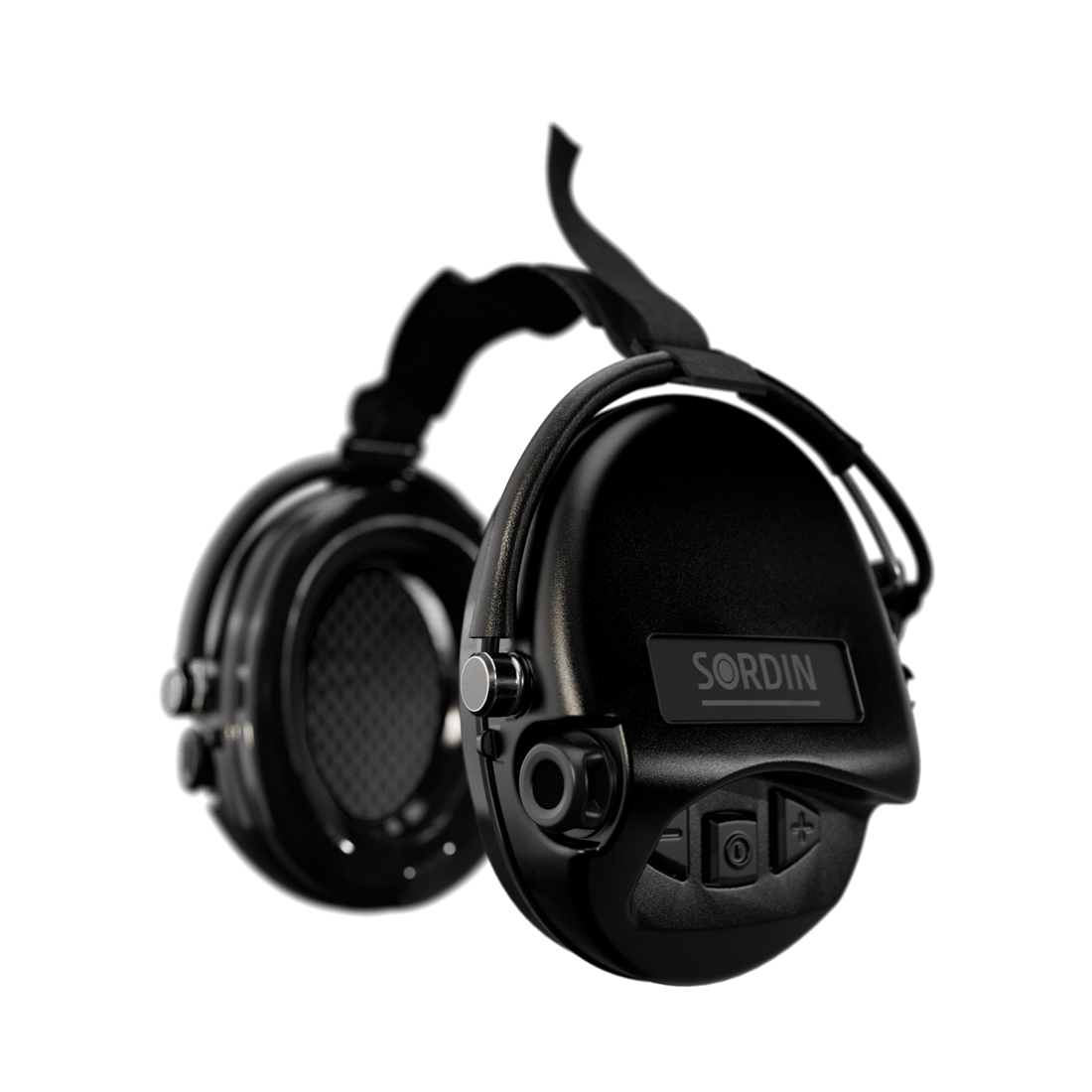

Sordin Supreme MIL AUX (black neckband)
Product data
Sordin Supreme MIL AUX (black neckband)
Sordin Supreme MIL AUX
Product number:
76308-04-S
Product number variants:
For:
Product Family:
Sordin Supreme
Version:
Neckband
Sealing rings material:
PVC foam
No items found.
No items found.

GENERAL INFO
The Supreme MIL AUX neckband provides high noise reduction yet with a slim design.

KEY FEATURES

  • Slim cups to fit both left hand and right hand shooters
  • also available as a foldable headband, helmet mounted and slim headband versions
  • Easy to use push buttons operates the electronic functions
  • Level Dependent function that allow you to hear ambient sound like warning signals, moving vehicles and important information and still be protected from hazardous noise
  • High amplification and natural sound reproduction without chopping and cutting out
  • Water proof microphones (IP67 tested)
  • The electronic circuits are encapsulated in multiple layers of lacquer and polymer for increased robustness
  • Amplification of low sounds
  • Very natural sound reproduction through the speakers inside the cups
  • Two loud speakers in each cup, one for surround hearing and one for radio/communication - radio/ communication works even when batteries are out
  • Sound reproduced through the level dependent function is limited to a maximum of 82 dB
  • Battery save function, low battery warning (40), auto shutdown (4h), battery life time 600h
  • Automatic switch-off after 4 hours if no button is activated saves battery life
  • Audio input (AUX) for connecting external audio sources, such as communication radios
  • Low battery warning when approximately 40 hours is left of the battery life
  • Applicable tests made in accordance to MIL standards MIL-STD-810g and EMC-MIL-STD-461G.
  • Additional RFI protection.

MIL STANDARDS
Sordin is in the process of extending test procedures according to MIL-STD-810H (Environmental Engineering Considerations and Laboratory Tests), and MIL-STD-461G (Requirements for the Control of Electromagnetic Interference Characteristics of Subsystems and Equipment).

TECHNICAL INFORMATION
Batteries: 2 x 1.5 V AAA/LR03, estimated operating time is around 600 hours
Level Dependent microphone frequency response: 100 Hz – 10 KHz
Loudspeakers / loudspeaker response: 2 x 32 Ohm / 20 Hz – 20 KHz
Operating conditions: - 20°C - + 50°C
Max audio signal allowed from the connected radio to not exceed 82 dB(A) through the speakers: 399 mVrms
Complies with following environmental directives: RoHS, WEEE

SPecification
Version
Neckband
Weight (gram)
277
Cup color
Black
Type
Electronic
Headband
n/a
Category
Medium
Battery lifetime (h)
600
NRR =
n/a
SNR =
26
H =
27
M =
23
L =
18
With connector
75333-S
Product number
Sordin Supreme Mil CC Headband Type TP120 Black
74332-06-S
Product number
Sordin Supreme Mil CC Slim HB Type Nexus TP120 Green
74332-S
Product number
Sordin Supreme Mil CC Slim HB Type Nexus TP120 Black
74333-10-S
Product number
Sordin Supreme Mil CC Slim HB Type 6 pol Sand
74333-09-S
Product number
Sordin Supreme Mil CC Slim HB Type 6 pol Green
74333-08-S
Product number
Sordin Supreme Mil CC Slim HB Type 6 pol Black
74333-05-S
Product number
Sordin Supreme Mil CC Slim HB Type TP120 Sand
74333-S
Product number
Sordin Supreme Mil CC Slim HB Type TP120 Black
74333-06-S
Product number
Sordin Supreme Mil CC Slim HB Type TP120 Green
